Thermal Break Aluminum Laser Marking Machine HK-YLP-30W

Technical Specifications

Parameter	Specification	Parameter	Specification
Working Medium	Fiber	Pumping Method	Fiber
Laser Power	30 W	Laser Wavelength	1064 nm
Laser Frequency	20 kHz – 200 kHz (continuously adjustable)	Repeat Accuracy	≤ 0.002 mm
Marking Area	0 – 110 mm	Cooling Method	Air Cooling
Marking Speed	0 – 12000 mm/s	Engraving Depth	0.01 mm – 0.5 mm (adjustable)
Engraving Line Width	0.05 mm – 0.20 mm	Laser Source Lifespan	≤ 100,000 hours

Machine Features

1. The HK-YLP-30W fiber laser marking machine is the most advanced third-generation laser marking system. It features high photoelectric conversion efficiency (up to 70%) and utilizes a high-speed galvanometer scanning system to achieve marking functionality.

2. It uses air cooling, making the entire machine compact in size. The output beam quality is excellent (M² close to 1, beam divergence angle is 0.24 mrad). With a high pulse repetition rate and stable power output, single pulse energy fluctuation is less than 1%, allowing for high-speed laser marking with precise control over spot size, depth, and shape.

3. Highly reliable, it can engrave metal materials and some non-metal materials. It has an ultra-long operational life and is energy efficient.

4. Highly integrated design with a compact structure and low energy consumption.

5. Fast marking speed — up to 5 times more efficient than traditional products.

6. Long lifespan, maintenance-free, and low operating costs. The lifespan is up to 10 times longer than traditional products.

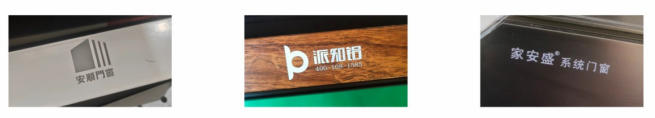

Applicable Materials

Thermal break aluminum doors and windows, window screens, aluminum alloy doors and windows, door and window hardware accessories, insulation strips, hollow aluminum spacer bars, window drainage covers, edge sealing strips, aluminum composite panels, etc.
