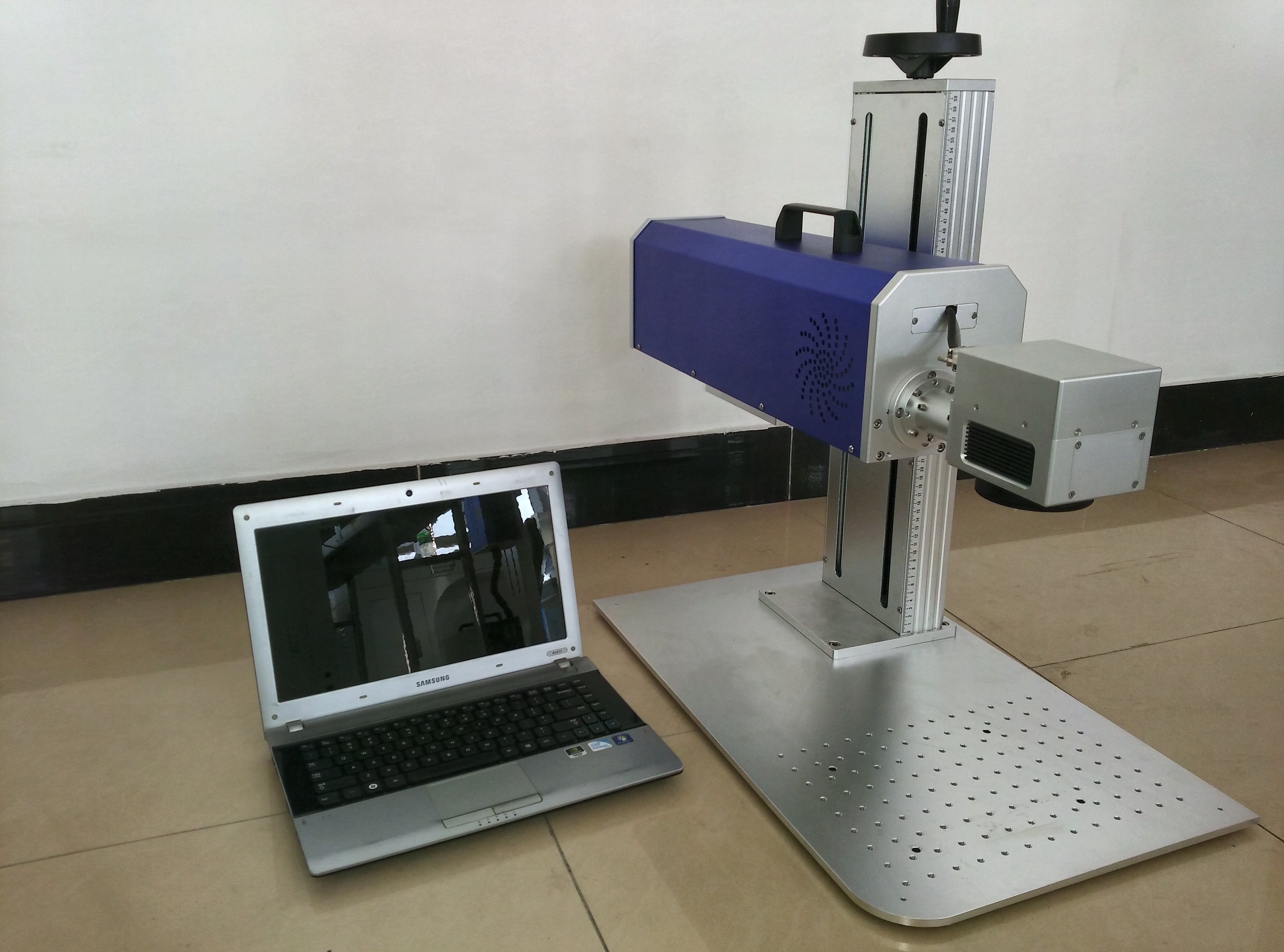

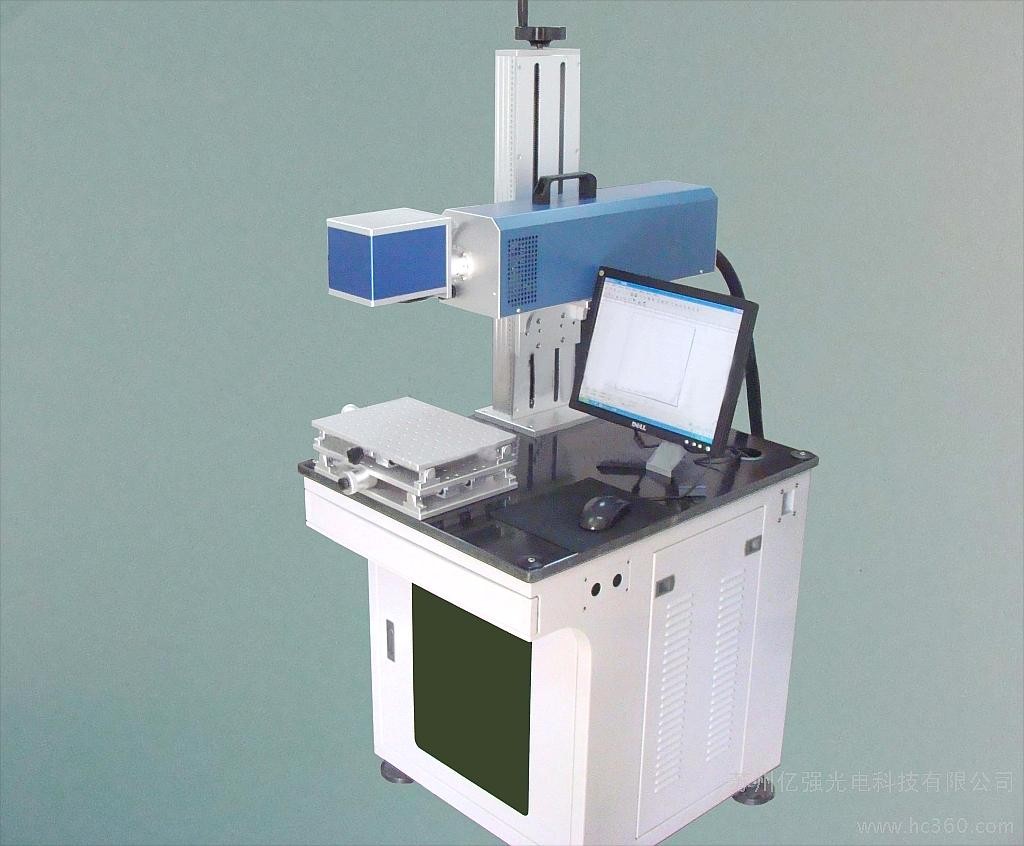

CO2 RF Laser Marking Machine

Product Introduction (Model: HK-CP-30L)

The CO2 series laser marking machine is specially developed by our company for marking non-metal materials.

The CO2 laser marking machine is computer-controlled, using a 10,640 nm laser beam that passes through beam expansion, focusing, and is finally directed by a galvanometer scanner. The laser follows a predetermined path on the workpiece surface, vaporizing the material to achieve engraving.

This equipment features an original American CO2 laser, high-speed galvanometer scanner, and a unique fully sealed cavity structure.

To meet different customer needs, this machine is available in both standard and economical models for you to choose from.

Application Fields

The CO2 laser marking machine is widely used across many industries, including tobacco, liquor, beverages, oil drums, aquatic products, paper packaging, crafts and gifts, nameplates, equipment casings, clothing and footwear, the IC industry, electronic components, and production lines for food, cosmetics, and pharmaceutical packaging. It can meet the marking needs of approximately 85% of various production lines.

Applicable Materials

The machine can mark materials including plastic, rubber, resin, paper, wood, leather, fabric, quartz, glass, acrylic, ceramics, PCB boards, and more.

Technical Specifications

Parameter	Specification	Parameter	Specification
Working Medium	ND: CO2	Marking Area	0 - 110 mm
Pump Mode	CO2	Repeatability	±0.002 mm
Laser Power	10W	Marking Speed	0 - 12,000 mm/s
Laser Wavelength	10,640 nm	Engraving Depth	0.01 mm - 0.5 mm
Laser Frequency	0 kHz - 20 kHz	Engraving Line Width	0.05 mm - 0.20 mm
Repeatability	≤ 0.002 mm	Fiber Laser Life	≤ 20,000 hours
Power Supply	Single Phase AC 220V 50Hz	Power Consumption	≤ 500W
Cooling Method	Air Cooling

Machine Features

Small footprint, easy to move, safe and stable.

Maintenance-free, no consumables; uses imported optical components with high precision.

Clear marking that is resistant to wear; high-speed metal laser.

Industrial-grade laser designed specifically for industrial production, offering faster marking speed and enhancing the core competitiveness of laser processing stations.

• High-speed digital scanning head with stable performance ensures efficient 24-hour continuous production.
• Smaller spot size and more uniform optical quality enable engraving of numbers, barcodes, QR codes, serial numbers, random codes, graphics, dates, trademarks, photos, and any other text or images.

Elegant appearance with ergonomic design concepts by European designers; compact scanning head.

Marking software runs on Windows XP platform with a Chinese interface; compatible with various software file formats such as AUTOCAD, CORELDRAW, PHOTOSHOP, including PLT, PCW, DXF, BMP, and can directly use SHX and TTF fonts, allowing free graphic design via computer.

Sample Images
