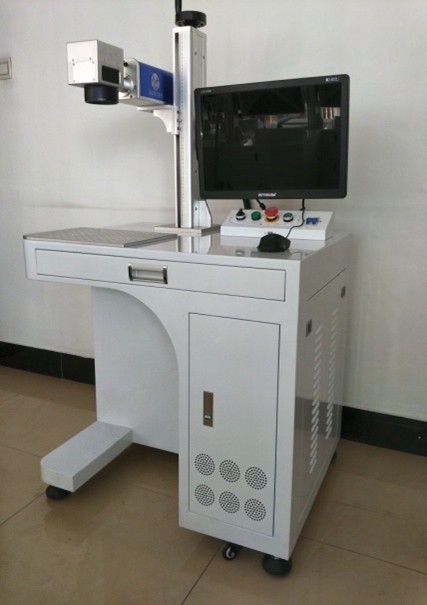

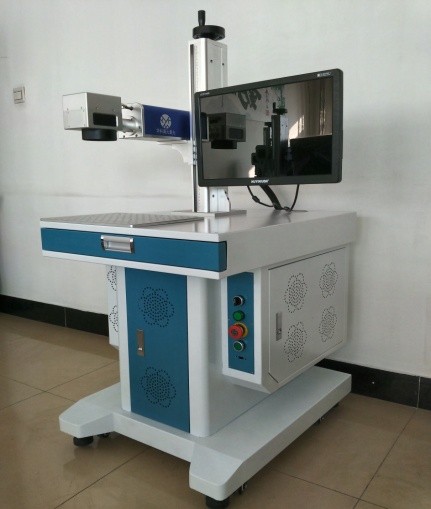

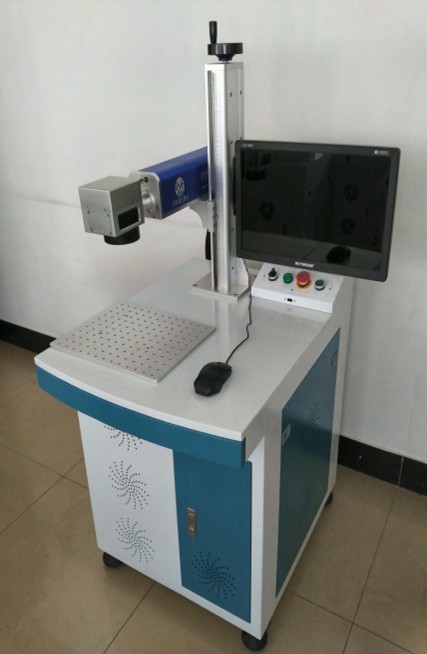

Fiber laser marking machine

The cabinet-type fiber laser marking machine is suitable for marking small or moderately sized workpieces that are easy to move. It can mark all types of metal materials as well as certain non-metal materials, delivering clear and aesthetically pleasing results. This model does not require an external water cooling system, making it well-suited for harsh environments and workplaces with significant temperature variations.

Features and Functions

The laser marking machine offers high performance with no deformation or pollution during marking. It is stable, cost-effective, allows precise control over marking depth, and is capable of long-term continuous operation.

It features an integrated design with a newly sealed optical path system, ensuring overall reliability and stability. The exterior is sleek and high-end in appearance.

Building on the maturity and practicality of previous generations of solid-state laser marking machines, the upgraded software and control system further enhance the overall stability of the machine.

It supports marking of any information including graphics, logos, and text. The resulting patterns are detailed, attractive, and permanently wear-resistant.

Capable of marking all metal materials and a variety of non-metal materials.

High production efficiency with computer-controlled automation, making it ideal for industrial-scale processing.

Application Fields

The fiber laser marking machine is a high-precision laser device used for marking on the surfaces of all metal materials and certain non-metal materials. It is especially suitable for applications that require fine detail and high precision.

It can mark both metals and a variety of non-metal materials, making it ideal for demanding marking tasks.Currently, fiber laser marking machines are widely used in the following fields:Aerospace components, Computer parts, Electronic components, Hardware products, Automotive parts, Integrated circuits (ICs), Electrical and electronic appliances, Mobile communication devices, Precision instruments, Eyewear and watches, Jewelry and accessories, Plastic buttons, Building materials, PVC pipes, Medical devices, Sanitary ware, Crafts and gifts, Nameplates and signage, Musical instruments, Equipment casings, Packaging for food, cosmetics, and pharmaceuticals, Assembly line operations.

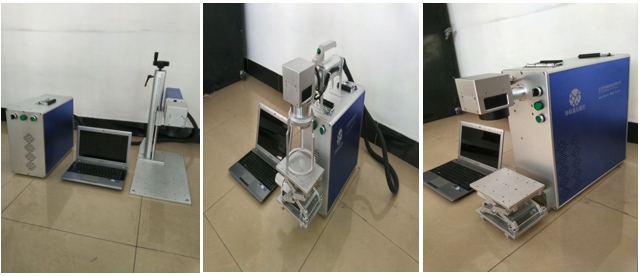

Portable Fiber Laser Marking Machine

Portable (Handheld) Fiber Laser Marking Machine

The portable (handheld) fiber laser marking machine is specifically designed to address the challenge of marking large components that are difficult to move. The entire unit is about the size of a computer tower, making it compact and easy to handle. It can be operated by hand and used in any orientation to perform laser marking directly on large mechanical parts.

Features of the Portable Fiber Laser Marking Machine

Equipped with a pulsed fiber laser, it delivers fine and aesthetically pleasing engraving, especially when operating with a pulse width under 30ns.

The all-fiber laser structure ensures high reliability without the need for optical components or collimation adjustments.

The system’s integrated design makes it user-friendly and provides an ideal solution for various industrial applications.

Long service life, compact size, and no need for bulky water cooling systems—simple air cooling is sufficient. It can operate reliably even in harsh environments with impact, vibration, high temperatures, or dust.

Processing speed is 2–3 times faster than that of traditional laser marking machines. With excellent beam quality and a small spot size, it produces very narrow marking lines, making it perfect for high-precision marking.

Fiber Laser Machine Technical Specifications

Parameter	Specification	Parameter	Specification
Beam Quality	M²: 1.5	Repeatability	0.002 mm
Average Output Power	10W / 20W / 30W / 50W	Minimum Line Width	0.016 mm
Max Marking Speed	12,000 mm/s	Total Power Consumption	Approx. 500W
Laser Wavelength	1064 nm	Cooling System	Air cooling
Marking Area	110 mm × 110 mm (optional)	Working Environment	Clean or low-dust environment
Laser Repetition Frequency	20 kHz - 80 kHz	Operating Temperature	13°C – 28°C
Minimum Character Height	0.05 mm	Working Humidity	5% - 75%, non-condensing
Marking Depth	0.01 - 1.0 mm (depending on material)	Power Supply	AC 220V / 50Hz

Marking Sample Showcase
