Aluminum Profile Online Laser Marking Machine HK-YLP-60W

Technical Specifications

Parameter	Specification	Parameter	Specification
Working Medium	Fiber	Pumping Method	Fiber
Laser Power	60W	Laser Wavelength	1064 nm
Laser Frequency	20 kHz - 200 kHz (continuously adjustable)	Repeatability	≤ 0.002 mm
Marking Area	0 - 110 mm	Cooling Method	Air Cooling
Marking Speed	0 - 12000 mm/s	Engraving Depth	0.01 mm - 0.5 mm (adjustable)
Engraving Line Width	0.05 mm - 0.20 mm	Fiber Laser Lifespan	≤ 100,000 hours

Machine Features

1. The Fiber HK-YLP-60W laser marking machine is the most advanced third-generation laser marking system. The flying marking speed can reach up to 120 meters per second.

2. It uses air cooling, with a compact machine size and excellent output beam quality (M² close to 1, beam divergence angle of 0.24 mrad). It features a high pulse repetition frequency, stable power, and single pulse energy fluctuation less than 1%, enabling high-speed laser marking with precise control over spot size, depth, and shape.

3. High reliability, capable of engraving metal materials and some non-metal materials, with an ultra-long service life and energy-saving performance.

4. Highly integrated, with a compact structure and low energy consumption.

5. Fast marking speed, with marking efficiency five times higher than traditional products. The flying marking speed can reach up to 120 meters per second.

6. Long lifespan, maintenance-free, and low operating costs. The lifespan can reach ten times that of traditional products.

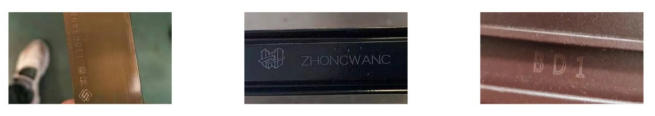

Applicable Materials

Broken bridge aluminum doors and windows, insect screens, aluminum alloy doors and windows, door and window hardware accessories, thermal insulation strips, aluminum spacer bars for insulated glass, drainage covers and edge sealing strips for doors and windows, aluminum composite panels, etc.
